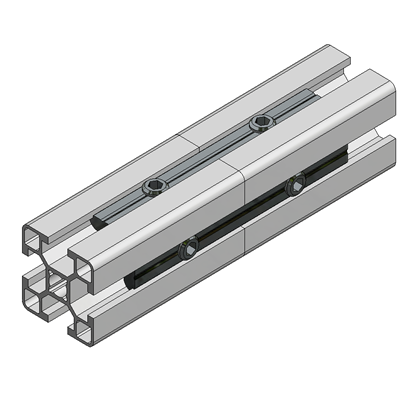

T-Slot Bar 30 - 90
Part. N° 21.0043
CAD DOWNLOAD ► 3D STEP | | Inventor 2020
| APPLICATIONS |
|---|
| - End to end connections for 30 series profiles |
| - Use on or multiple T-Slot Bars |
| - No drilling or fabrication required |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| -Qty 1 bar, zinc plated steel | |
| -Qty 2 M8x10 Set Screws | |
| - Weight | - .033 kg/piece |
| ASSEMBLY |
|---|

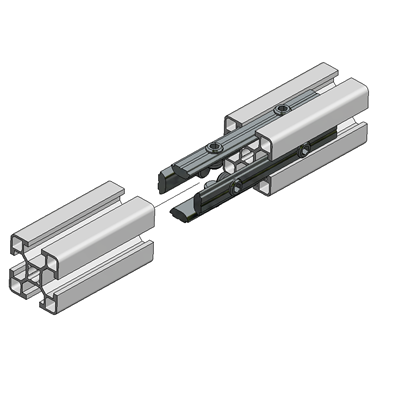

| - Slide in from end of profiles |
| - Or rotate in to place if access to profile ends is blocked |
| - Tighten both M8x10 Set screws with a 4mm hex key |
| - Recommended locking torque 12Nm |
